Our Equipment
The machines behind the work. Capacities listed the way the shop floor runs them.
| Machine | Type | Capacity |
|---|---|---|

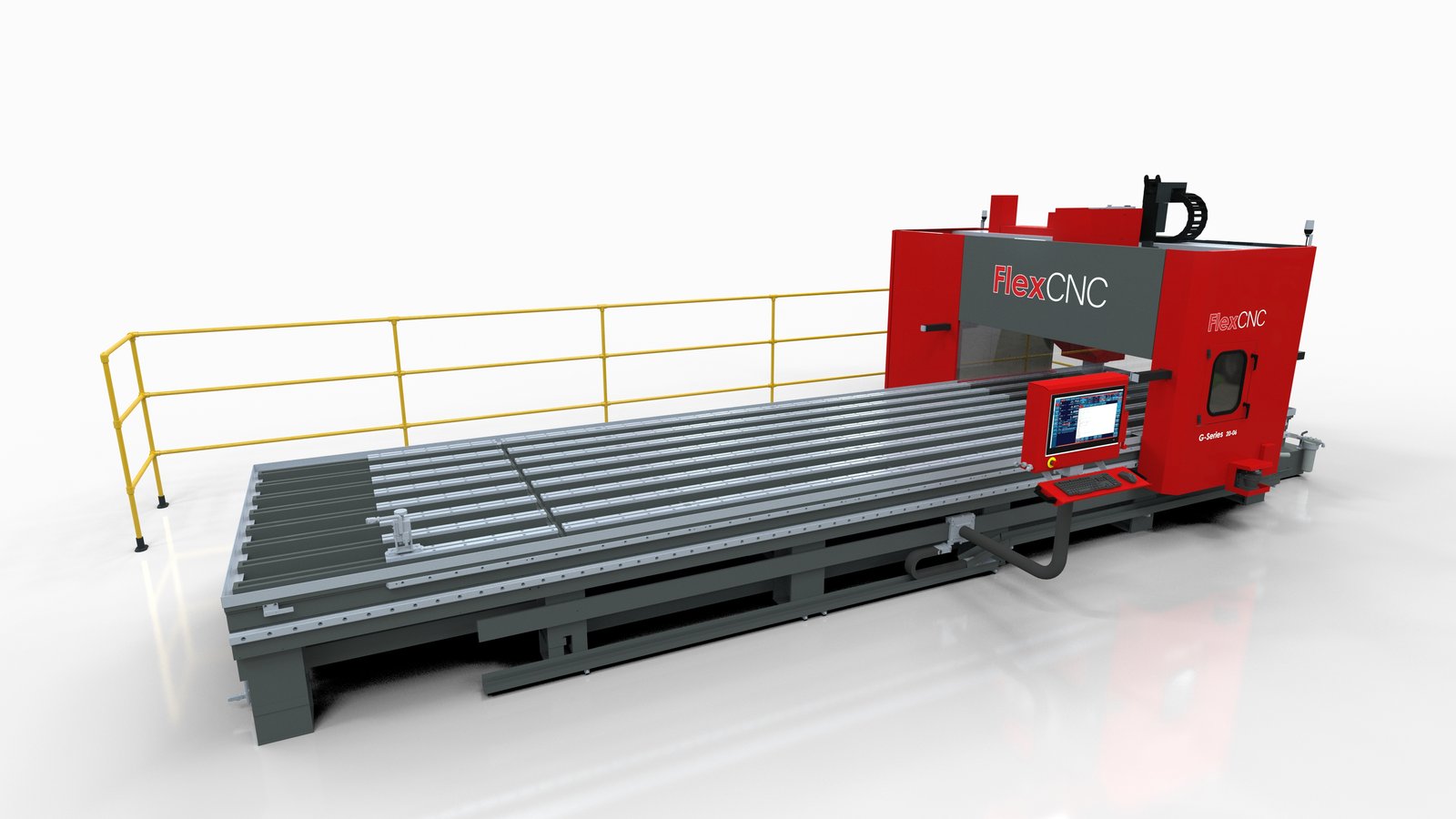

| FlexCNC G-Series (20-06) | CNC gantry mill — 50-taper, 40 hp, 20-tool ATC, through-spindle coolant | 72" × 240" work envelope |
| Haas VF-5/50 | CNC vertical machining center, 50-taper | 50" × 26" × 25" travels |

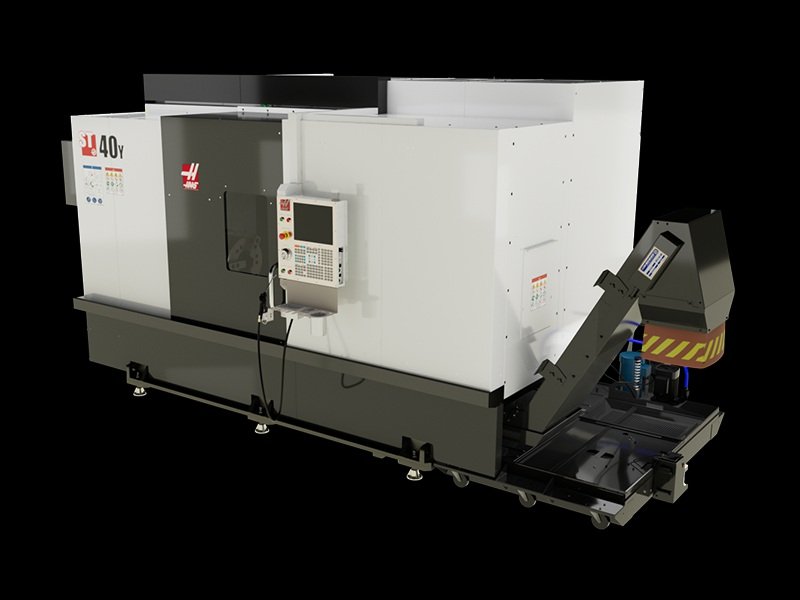

| Haas ST-40Y | CNC mill-turn center — Y-axis, C-axis, 24-station live tooling, servo tailstock | 27.5" dia × 44", 15" chuck, 4" bar, 55 hp |
| Haas TL-3W | CNC lathe | 30" swing × 60" centers, 3.5" bore |

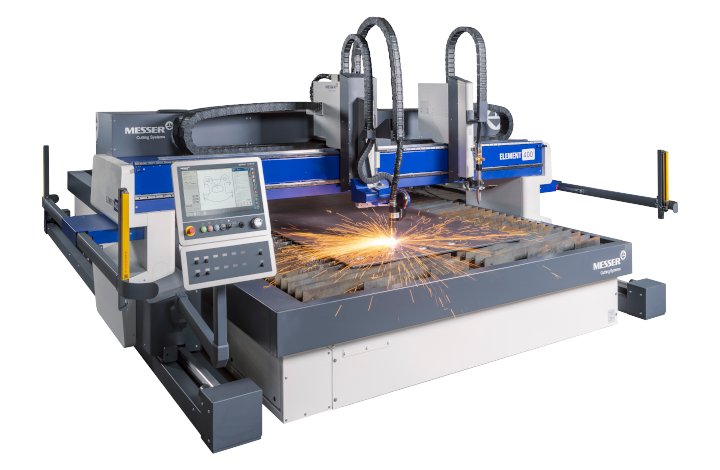

| Messer Element 400 | CNC HD plasma / flame — Hypertherm HPR400XD power supply, ALFA torch + Bevel-S head | 10' × 24' table; 3" plasma, 12" flame; stainless and aluminum to 1-3/4"; True Hole; bevels +45° to −45° cut in process, ±540° C-axis rotation, ±52° torch tilt |

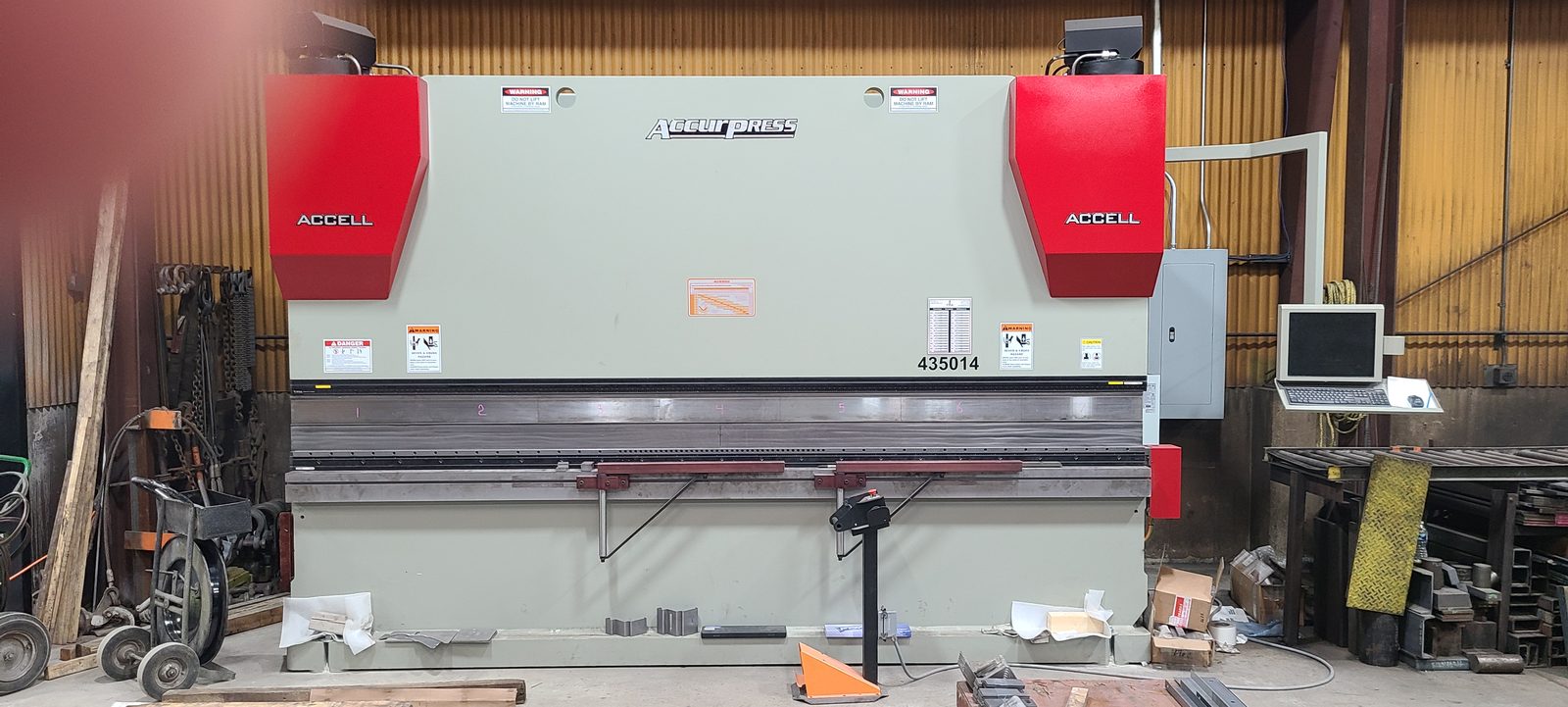

| Accurpress 435014 | High-precision CNC press brake — Wila hydraulic tool clamping | 350 ton × 14' bed, ±0.0004" repeatability |

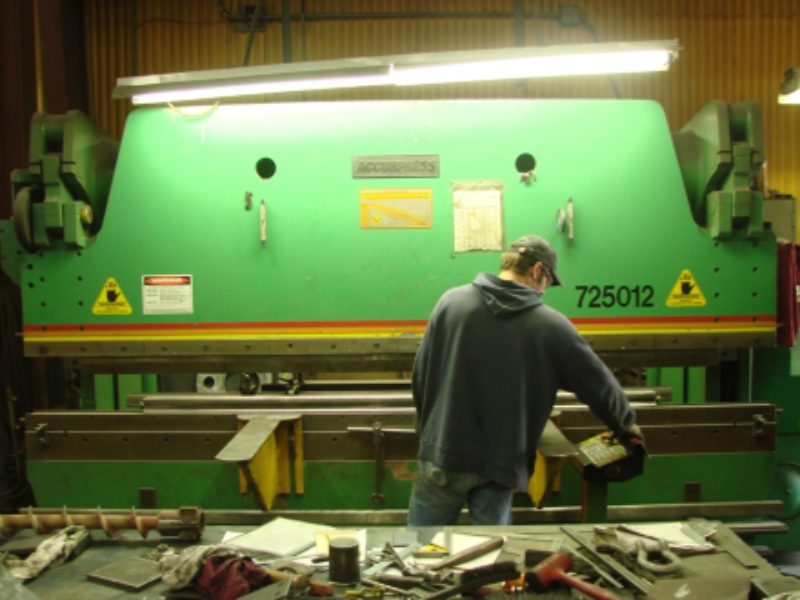

| Accurpress 725012 | CNC press brake | 250 ton × 12' bed |

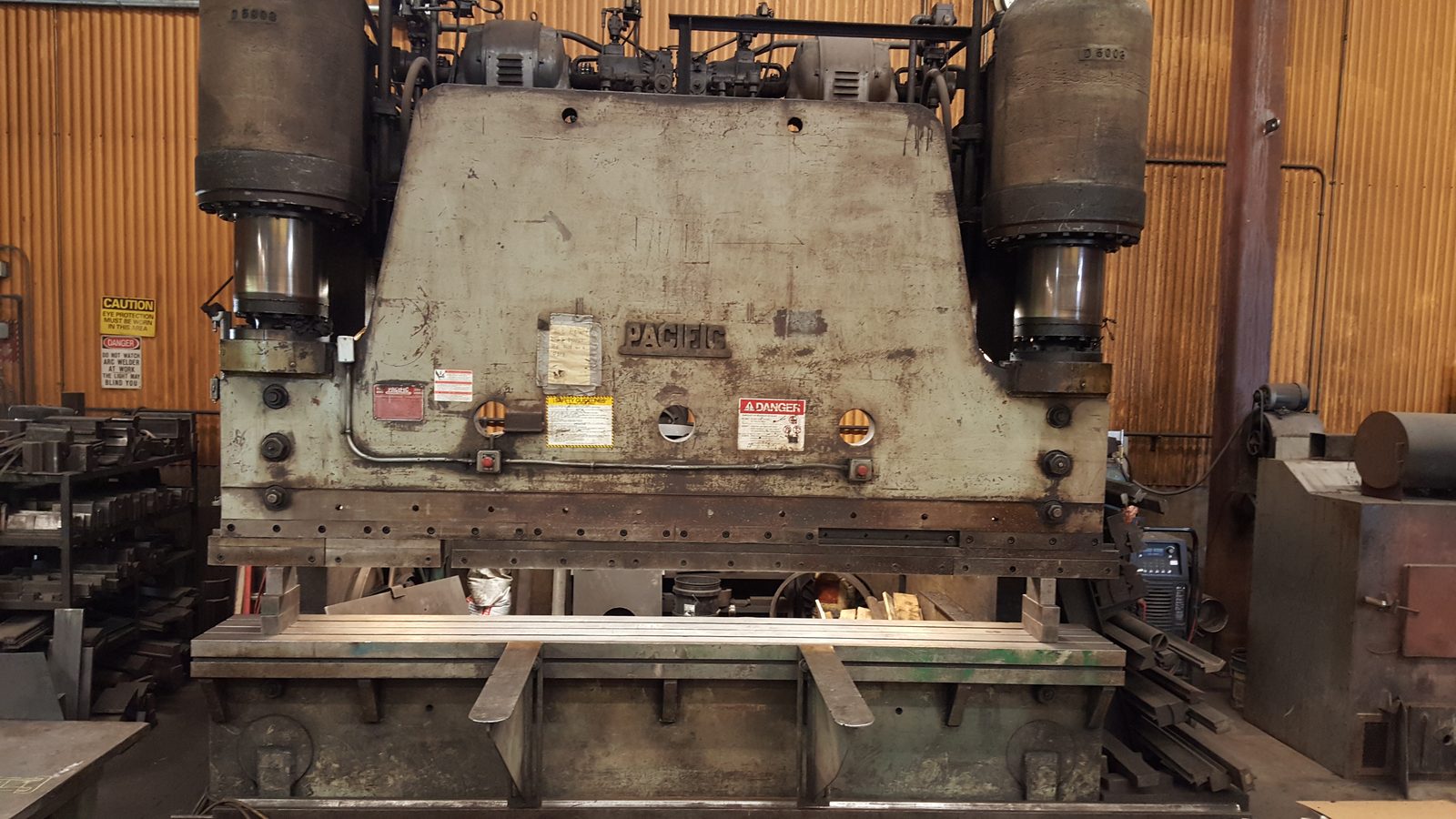

| Pacific 600-12 | Press brake | 600 ton × 12' bed, 3/4" at full length — see heavy plate press brake forming |

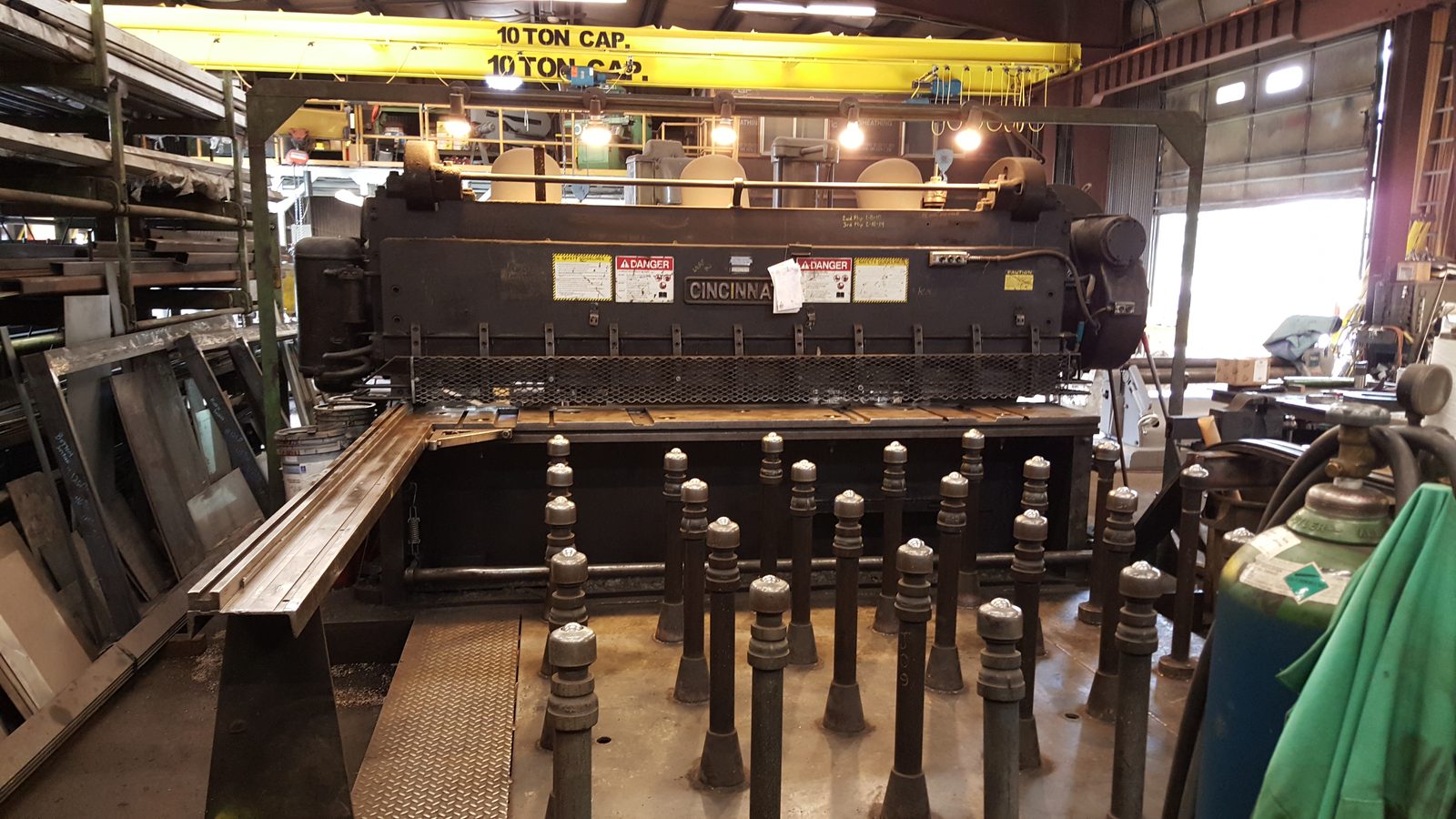

| Cincinnati 4310 | Shear | 1/2" × 10' |

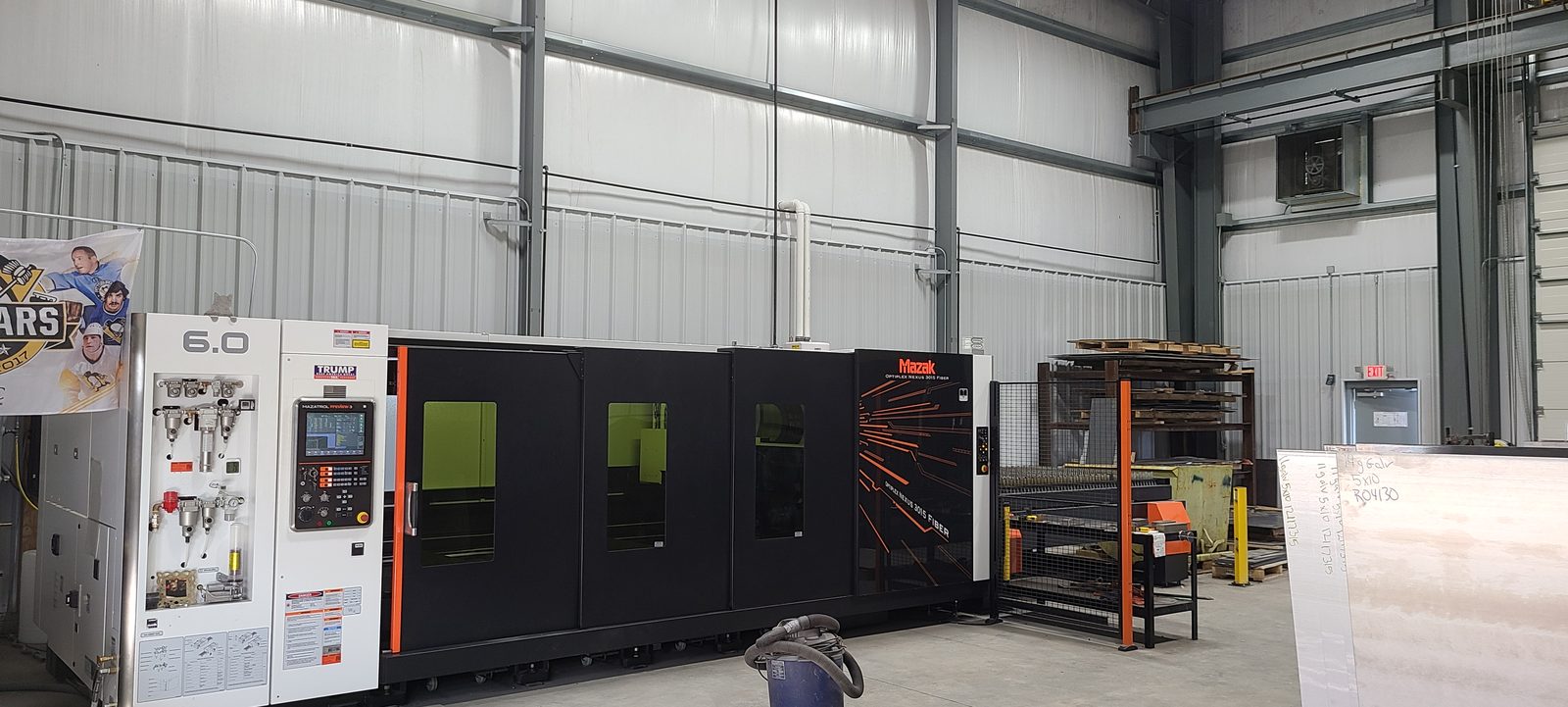

| Mazak Optiplex 3015 | CNC 6 kW fiber laser cutter | 60" × 120" table — 1" mild steel, 3/4" stainless |
| Hypertherm Powermax 85 | Hand plasma cutter | 1" recommended, 1-1/2" sever, 3/4" pierce |

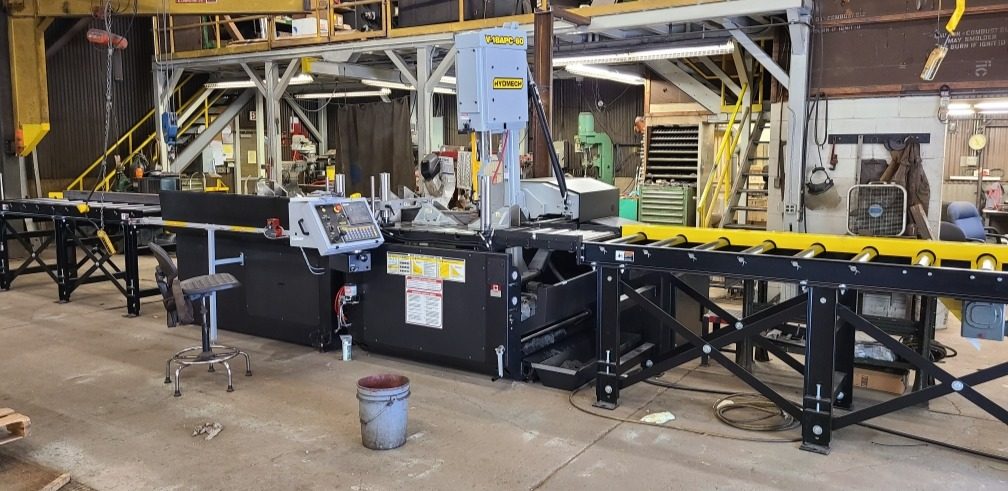

| HYDMECH V-18APC-60 | CNC automatic saw | 18" × 22" at 90°, 18" round; 60° left/right programmable miter; 40" auto-index; handles stock to 60' |
| DoAll V-36 | Vertical contour saw | 36" throat, 10" under guide |
| DoAll 1612-0 | Vertical contour saw | 16" throat, 12" under guide |
| Dake SE-912 | Horizontal band saw | 9" round, 9" × 12" rectangular |

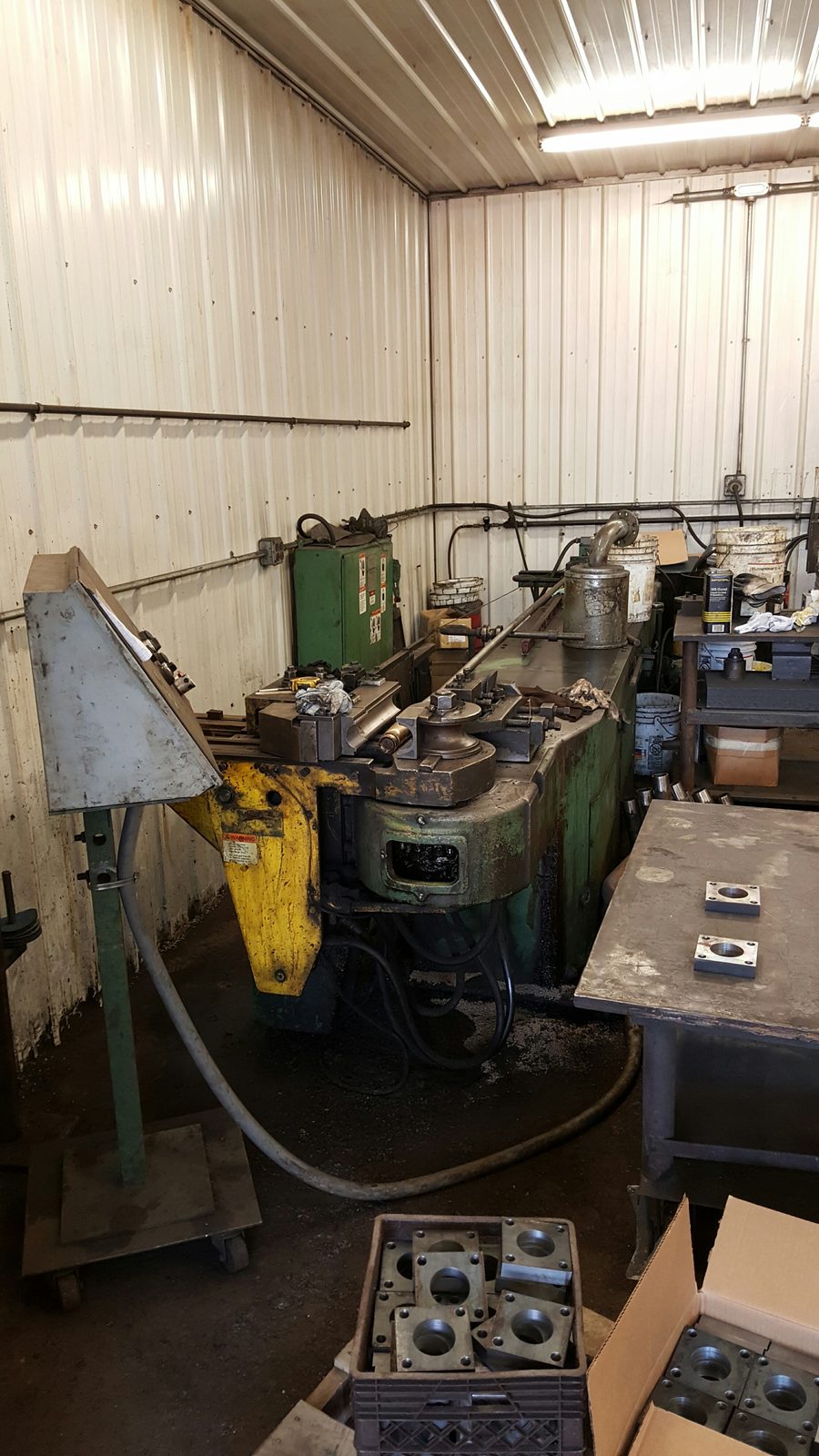

| Pines No. 2 | CNC pipe bender | 2" sch 80 pipe, 3" OD tube; 180° bend, 12" max radius |
| WEBB 6L-1010 | Plate roll | 3/8" × 10' (120") A36 |

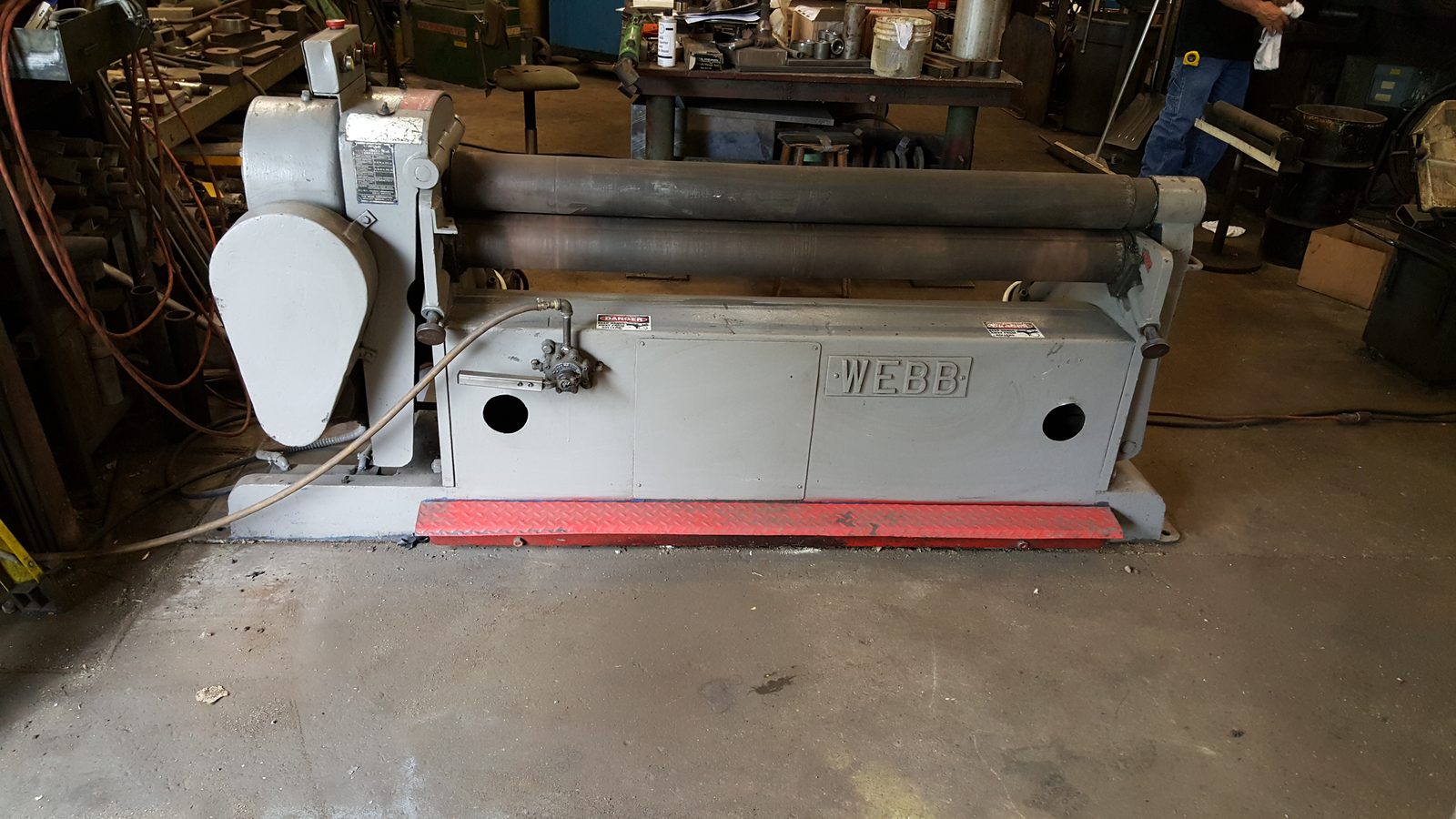

| WEBB 505 | Rolls | 60" × 10 ga |

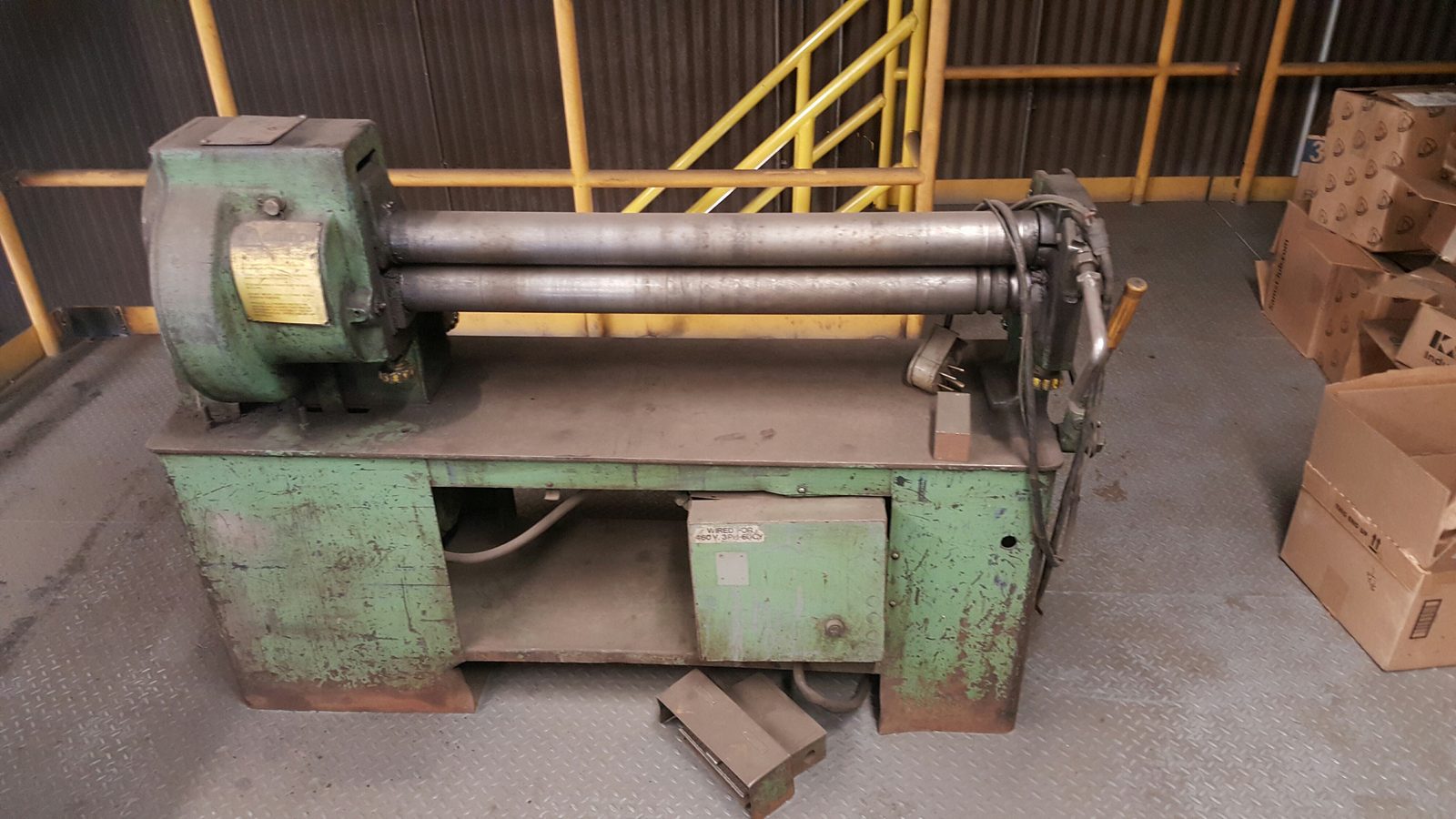

| Roper Whitney Pexto 3416G | Rolls | 36" × 16 ga |

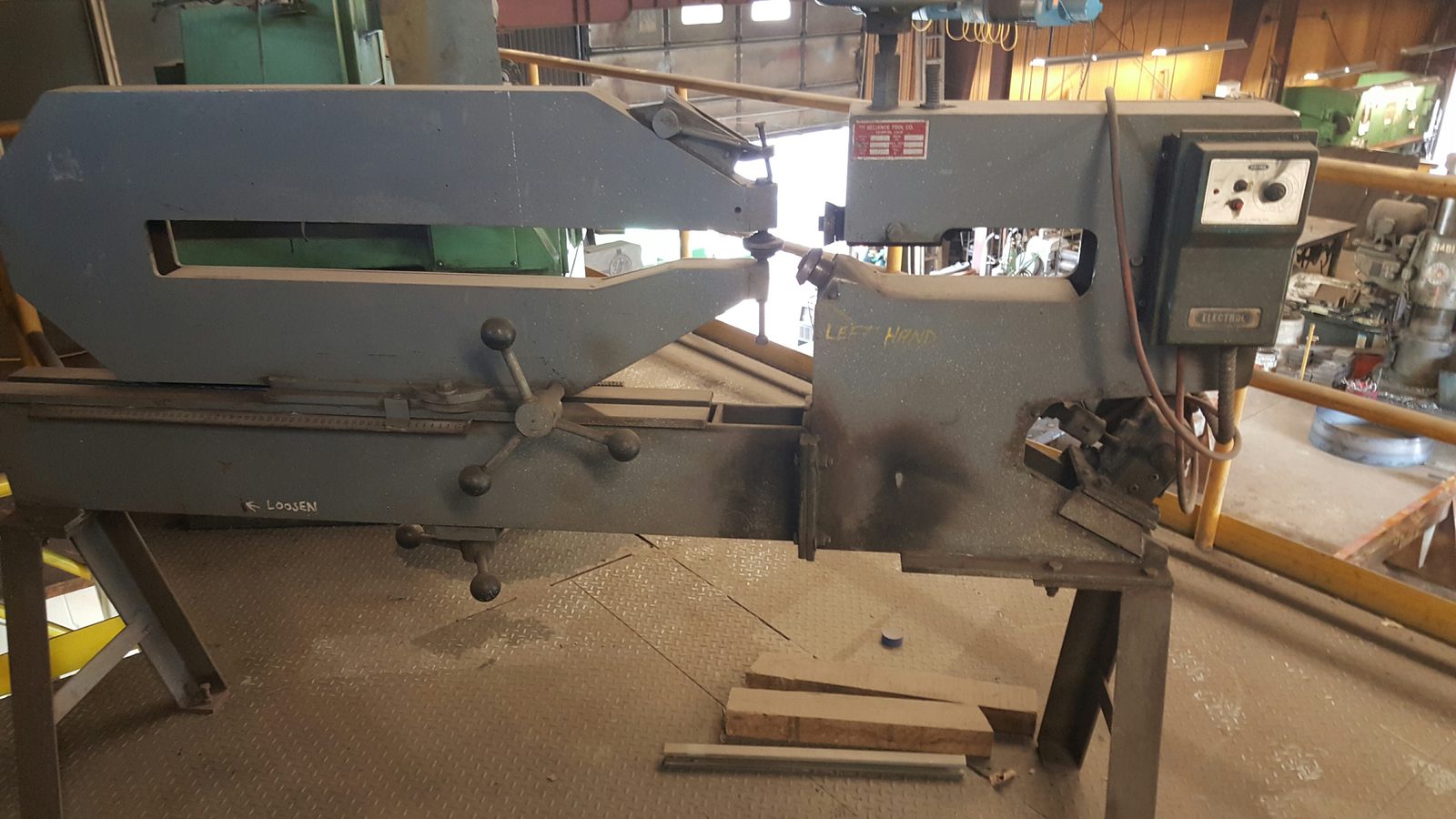

| Reliance CS5273 | Circle shear | 52" dia, 1/4" mild steel |
| Cincinnati | Radial arm drill | 15" × 6' |

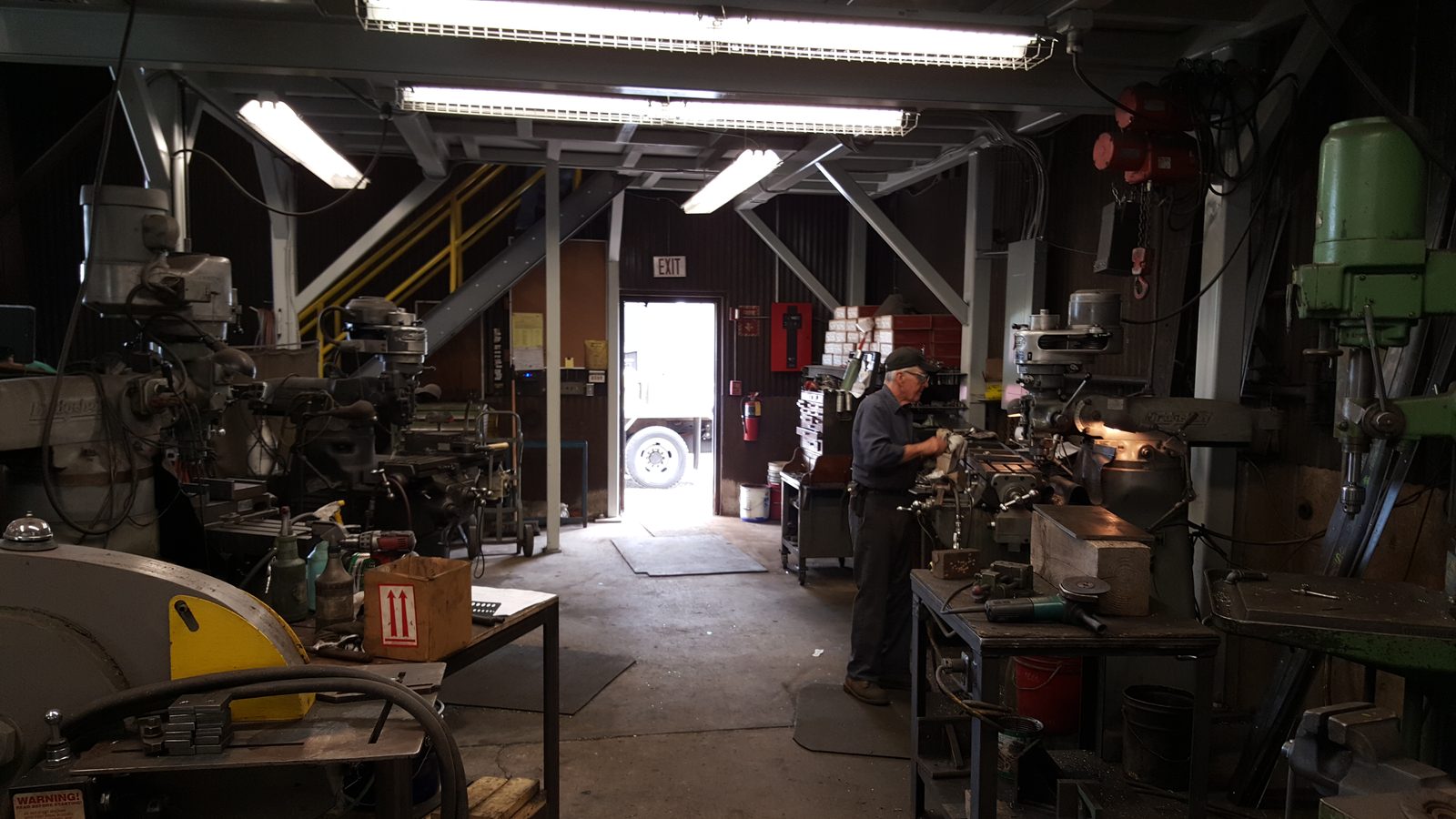

| Bridgeport | Vertical milling machines | Various models |

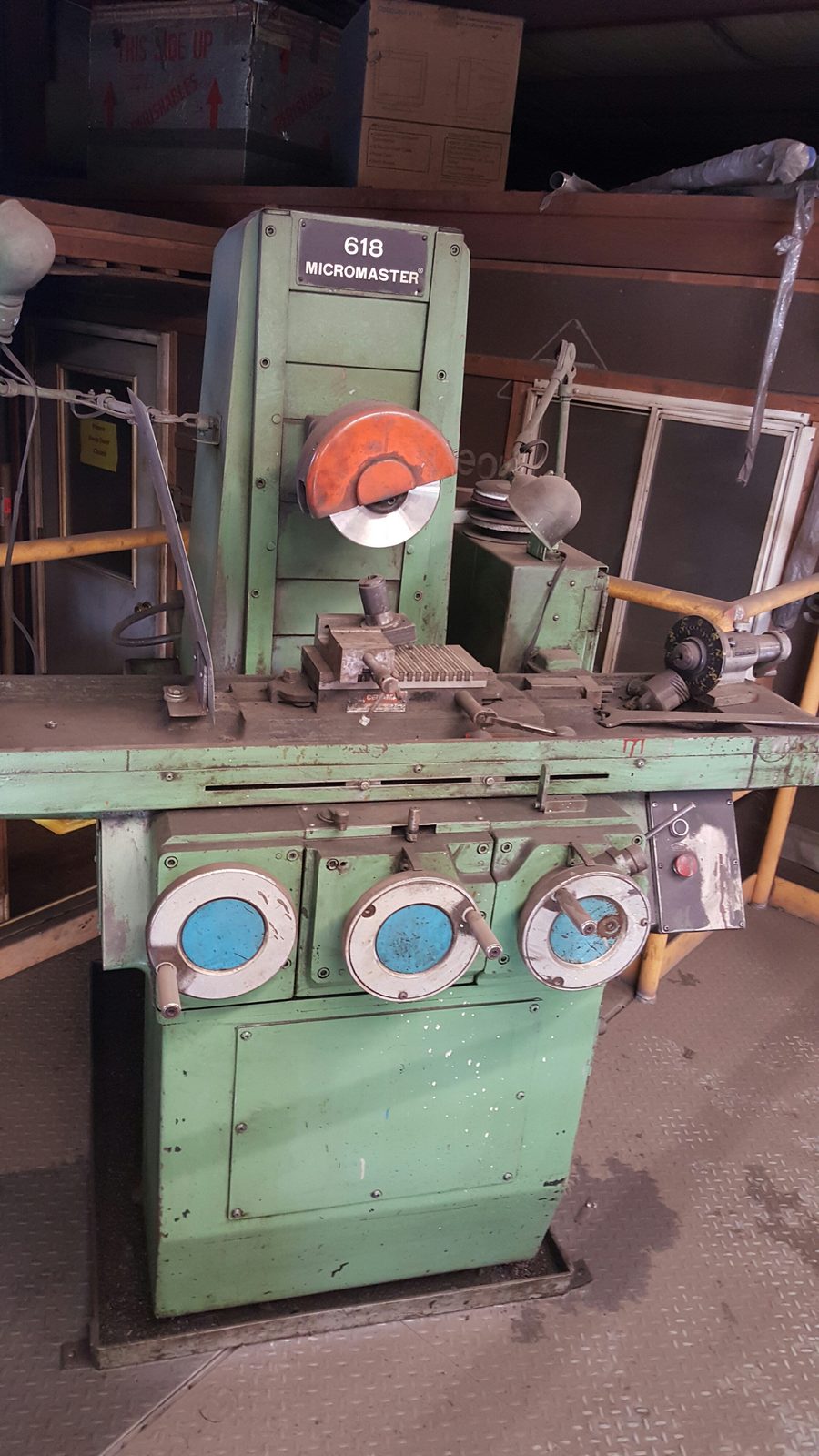

| Brown & Sharpe 618 Micro Master | Surface grinder | 6" × 18" |
| Miller, Lincoln & Daihen OTC | Welding power sources — MIG, flux-cored, TIG, stick and stud | 14 machines to 650 A at 100% duty; calibrated on a twelve-month interval |
| Lincoln DC-655 + LT-7 | Submerged arc welding tractor with LF-72 feeder | 650 A at 100% duty — long structural and vessel seams |
| IPG LightWELD 2000 XR | Handheld laser welder and laser cleaner | Steel and 3000/5000 series aluminum to 0.315" (8 mm) |
| Aronson & KBC | Welding positioners | 2,500 lb and 700 lb capacity |
| Weldsale WS510B | Cast platen fit-up tables — five stations | 5' × 10' each — flat, repeatable fixturing for weldments |
| Open-air blast | Commercial sandblasting — see sandblasting & coating | Two 1,000 lb pots, 375 CFM portable air; part size limited by crane pick, not a booth door |
| Coyote 48 | Airless wheel table blast with abrasive recycling | 49" dia × 25" high, 5,000 lb table |
| Timesaver Speedbelt TOP 18 | Deburring, sanding and polishing | 18" belt |

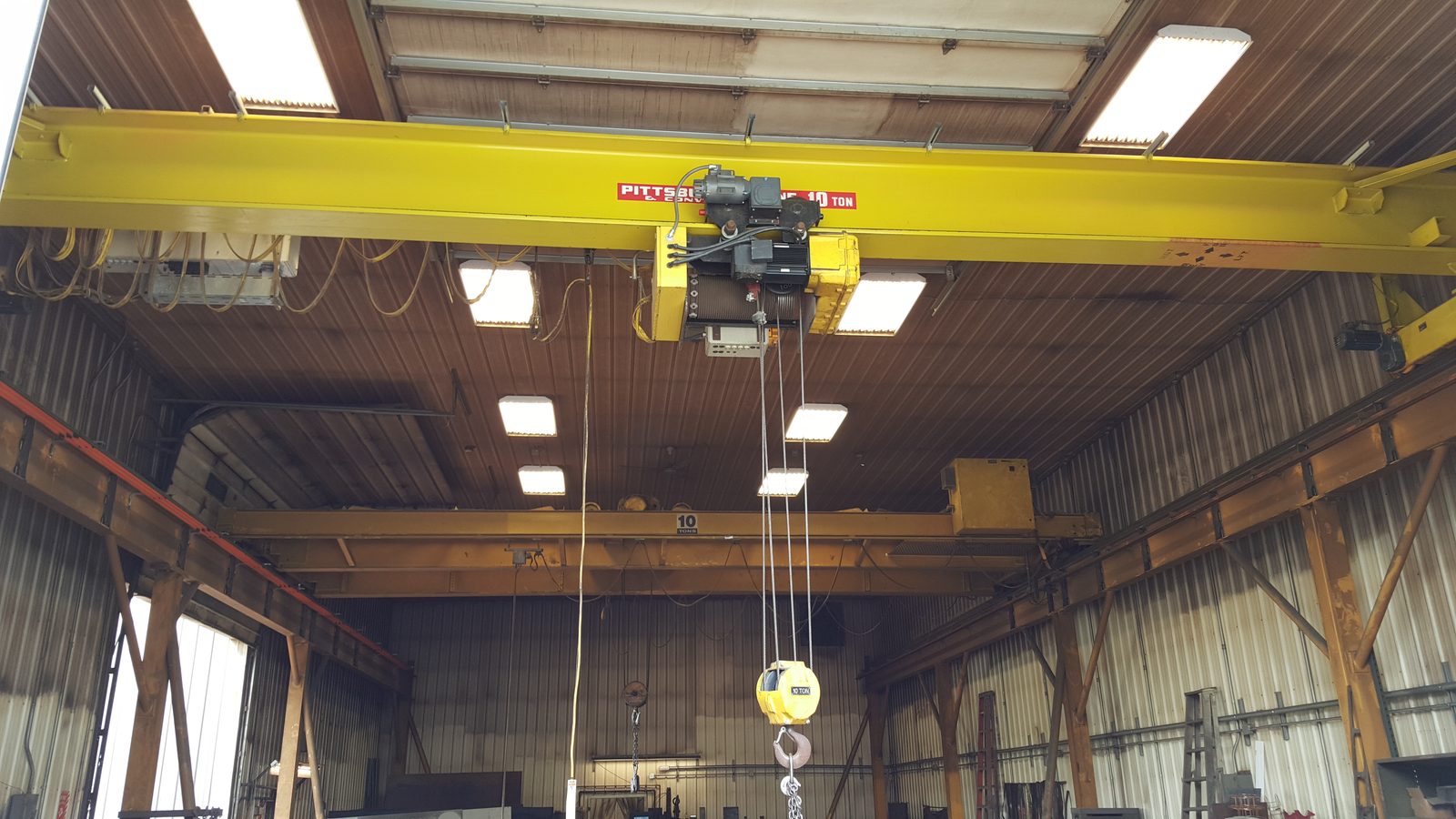

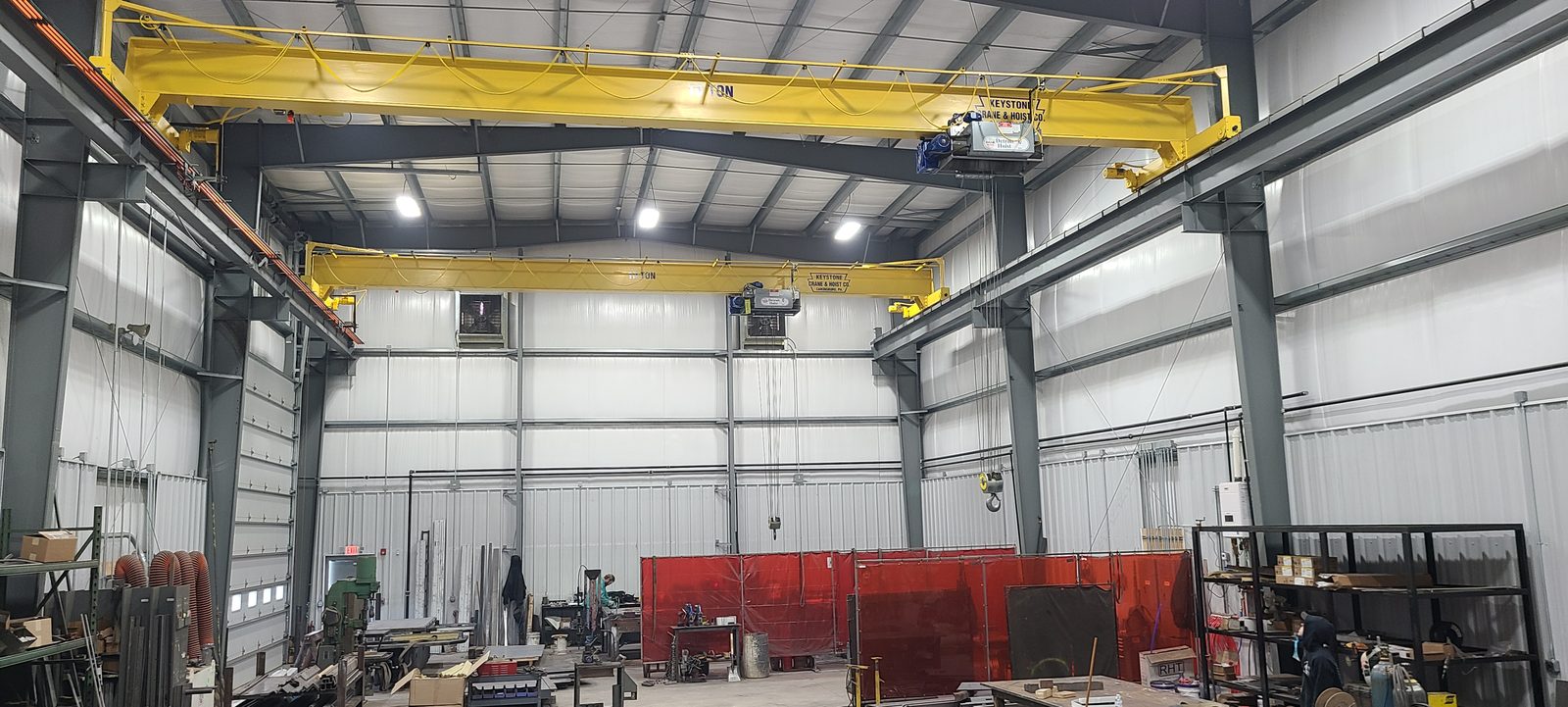

| Overhead cranes | Seven 10-ton bridge cranes, annually inspected | Five with 10-ton hoists, two rigged with 5-ton hoists; two bridges paired for 20-ton tandem lifts under written procedure |
| Wall jib | PGH Crane & Conveyor jib with chain hoist | 1-ton |
| Grove RT745 | Rough terrain yard crane | 45-ton capacity — outdoor lifting and loading |
| OTEK 55SC | Heavy capacity forklift | 55,000 lb |
| Caterpillar DP70E1-D | Forklift | 13,600 lb at 24" load center, 96" forks |
| Toyota 7FGU35 / 7FDU35 | Forklifts | 7,000–8,000 lb class |
